A Steel Structure High Rise Building, and How is it Defined in Modern Architecture?

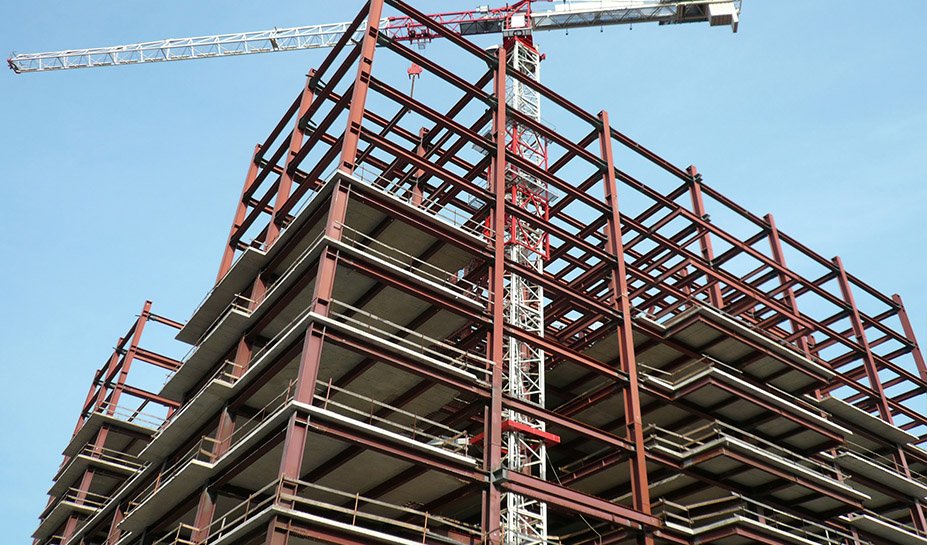

A steel structure high rise building is a tall building primarily supported by a steel framework consisting of columns and beams that resist loads through a strong, interconnected skeleton. In modern architecture, a structure that rises above 75 feet (approximately 23 meters) or has 7 to 10 stories is typically considered a high-rise.
These buildings are often found in urban areas due to limited land and high demand for vertical space. Steel structures are especially favored in modern design for their ability to support immense loads while remaining lightweight and flexible, allowing for more creative and efficient use of space.
What Structural Systems Are Commonly Used in Steel Structure High Rise Building?
Steel Structure High Rise Building relies on several structural systems to maintain stability and performance. The most commonly used systems include
- Moment-Resisting Frame: Joints are rigid, allowing the frame to resist bending and shear forces without additional bracing.
- Braced Frame: Uses diagonal bracing of X, K, or V types to counteract lateral forces like wind or earthquakes.
- Core and Outrigger System: A central concrete or steel core works with horizontal outriggers that tie into perimeter columns for enhanced stiffness.
- Tube System: The exterior perimeter functions as a hollow tube to resist lateral loads, ideal for very tall buildings.
These systems are selected based on building height, location, wind, seismic activity, and architectural requirements. Forever Engineering LTD selects the most effective structural system — from moment-resisting frames to core-outrigger designs — based on the project’s unique needs.
What Are the Main Advantages of Using Steel Structures in High Rise Building Compared to Concrete?
Steel structures offer several key advantages over concrete in high-rise construction:
- Strength-to-Weight Ratio: Steel is much stronger and lighter than concrete, reducing the load on foundations.
- Speed of Construction: Prefabricated steel components can be rapidly assembled on-site, significantly shortening the construction schedule.
- Flexibility in Design: Steel allows for longer spans and more open floor layouts without internal support columns.
- Seismic Resistance: Steel’s ductility allows it to bend without breaking, making it highly resistant to earthquake forces.
- Sustainability: Steel is recyclable and generates less on-site waste, supporting green building practices.
Why Is Steel the Preferred Material for High-Rise Building Construction?
Steel is preferred in high-rise construction for a combination of performance, economy, and versatility. It offers high tensile strength, allowing architects and engineers to build taller and slimmer structures.
Its prefabrication capability, precision in manufacturing, and ease of transportation make it ideal for complex urban projects. Furthermore, steel’s resilience under dynamic loads, such as wind and seismic events, makes it a reliable material for ensuring the long-term stability of tall buildings.
Forever Engineering LTD consistently chooses steel for its superior performance in high-rise applications, ensuring strength, flexibility, and long-term durability.
What Types of Steel Sections Are Commonly Used in Steel Structure High Rise Building?
Various types of steel sections are used in Steel Structure High Rise Building, depending on their structural role:
- H-Beams (Wide Flange Beams): Used in columns and beams for carrying vertical and horizontal loads.
- I-Beams: Common for framing and floor systems.
- Hollow Structural Sections (HSS): Used for bracing and architectural elements due to their aesthetic appearance and torsional resistance.
- Channels and Angles: Used in secondary framing and connections.
- Plates and Bars: For base plates, gusset plates, and reinforcement components.
These sections are chosen based on load demands, structural calculations, and architectural requirements.
How Does the Construction Process of a Steel Structure High-Rise Building Differ from Traditional Methods?
The construction of a Steel Structure High Rise Building differs significantly from traditional concrete methods in both sequence and speed:
- Prefabrication: Steel components are fabricated off-site with precise specifications, reducing on-site labor and error.
- Assembly: Once delivered, steel sections are quickly erected using cranes and bolted or welded together.
- Concurrent Activities: While the steel frame is being erected, other tasks like plumbing, electrical work, and façade installation can begin simultaneously.
- Foundation Load: Due to its lightweight, steel imposes less stress on foundations, potentially reducing excavation and foundation costs.
This fast-track approach minimizes project timelines and labor costs, making steel a highly efficient choice for modern high-rise construction. Forever Engineering LTD uses industry-standard H-beams, hollow sections, and plates to ensure both structural reliability and architectural flexibility.
The Role of Steel in the Strength, Safety, and Sustainability of Steel Structure High Rise Building
Steel Structure High Rise Building demands structural systems that can withstand extreme forces, such as earthquakes and strong winds, while also meeting safety, construction speed, and sustainability standards. Steel, as a primary building material, excels in all these areas, making it the top choice for modern high-rise construction.
How Does Steel Contribute to the Overall Strength and Stability of a High-Rise Building During Earthquakes or High Winds?
Steel is inherently strong, ductile, and flexible — three essential qualities that contribute to a building’s stability during seismic events and windstorms. In earthquakes, structures must absorb and dissipate energy rather than resist it with rigidity. Steel’s ductility allows it to bend and deform without breaking, absorbing seismic energy and preventing catastrophic failure.
During high winds, such as those experienced in typhoons or hurricanes, the slender design of high-rises makes them more susceptible to swaying. Steel frames accommodate this movement without compromising structural integrity, ensuring occupant safety and structural performance.
How Are Connections Between Steel Members Designed to Ensure Safety in a High-Rise Steel Structure?
Connections are critical points in any steel structure and are carefully engineered to maintain structural integrity under all loading conditions. There are two primary types of connections: bolted and welded.
- Bolted connections are commonly used due to their speed and ease of assembly on-site. High-strength bolts ensure tight, secure joints between beams and columns.
- Welded connections provide rigid joints that offer strength and stability, particularly in seismic zones.
Design engineers follow international standards such as AISC or Eurocode to ensure each connection can handle tension, compression, shear, and moment forces without failure. Additionally, redundancy is built into connection designs to provide backup load paths in case of partial failure.
What Fire Protection Methods Are Used in Steel Structure High Rise Buildings?
While steel is non-combustible, it loses strength when exposed to extreme heat during a fire. Therefore, fire protection is a critical component in steel high-rise buildings. Common methods include:
- Intumescent Coatings: These paint-like materials expand when heated, forming an insulating barrier around the steel.
- Spray-Applied Fire-Resistive Materials (SFRM): Sprayed onto steel to create a thermal barrier.
- Encasement with Fire-Resistant Boards or Concrete: Physical barriers to heat, often used in high-risk areas.
Fire protection systems are carefully selected based on building use, fire rating requirements, and local building codes. Forever Engineering LTD applies intumescent coatings and SFRM techniques to meet strict fire safety codes.
How Does the Use of Prefabricated Steel Components Speed Up the Construction Timeline of a Steel Structure High Rise Building ?
One of steel’s greatest advantages in high-rise construction is the use of prefabricated components. These are manufactured off-site under controlled conditions and delivered ready for installation. This process offers several time-saving benefits:
- Parallel Workflow: Foundation work and steel fabrication occur simultaneously, reducing total project time.
- Fast Erection: Prefabricated steel sections can be quickly assembled using cranes, often achieving multiple floors per week.
- Weather Resistance: Unlike concrete, steel construction is less affected by weather delays since it doesn’t require curing.
The result is faster completion, reduced labor costs, and earlier occupancy — all of which enhance project efficiency and return on investment.
What Are the Long-Term Maintenance Requirements for Steel Structure High Rise Building?
Steel Structure High Rise Building are durable and require relatively low maintenance, but regular inspections are essential for longevity. Key maintenance activities include:
- Coating Inspections: Paint and protective coatings must be maintained to prevent corrosion, especially in coastal or humid environments.
- Structural Inspections: Routine checks of bolted and welded connections ensure there are no signs of fatigue, deformation, or corrosion.
- Fireproofing Checks: Over time, fire protection materials may degrade and need touch-ups or replacement.
With proper care, steel buildings can maintain their structural integrity for 50 years or more, making them a long-term investment. Forever Engineering LTD provides maintenance guidance and inspections to ensure your Steel Structure High Rise Building is safe and durable for decades.
How Do Steel Structure High Rise Building Contribute to Sustainable and Green Building Practices?
Steel is one of the most recyclable construction materials available, with almost 100% of structural steel being recyclable and reusable. Its sustainability benefits include:
- Reduced Waste: Precise prefabrication leads to minimal on-site waste.
- Energy Efficiency: Slim steel profiles allow for more insulation and larger windows, improving energy performance.
- Lower Carbon Footprint: Many steel manufacturers now use electric arc furnaces powered by renewable energy to reduce emissions.
Furthermore, steel buildings are often designed to meet LEED or other green building certifications, aligning with global environmental goals.
Conclusion
At Forever Engineering LTD, we believe that Steel Structure High Rise Building represent the future of safe, sustainable, and efficient urban development. With unmatched strength, flexibility, and durability, steel structures offer superior performance in seismic zones, high-wind areas, and densely populated cities. Our expertise in designing and constructing steel high-rise buildings ensures faster project delivery, long-term structural integrity, and reduced environmental impact.
By combining innovative engineering, quality materials, and precision construction techniques, Forever Engineering LTD is proud to contribute to Bangladesh’s modern skyline with steel structures built to last — strong, smart, and sustainable.
