Sheet pile cofferdam construction is a common method used to create a temporary, enclosed work area in or near water. Contractors use interconnected sheet piles to form a barrier around the construction zone. After installing the cofferdam, workers remove or control the water inside the enclosure so they can carry out foundation, bridge, marine, and other construction activities in a relatively dry and controlled area.
The right cofferdam design depends on water depth, soil conditions, groundwater pressure, excavation depth, river flow, tidal conditions, nearby structures, and project requirements. Proper planning, suitable sheet piles, reliable installation equipment, trained workers, and effective water control help contractors build a stable and safe cofferdam.

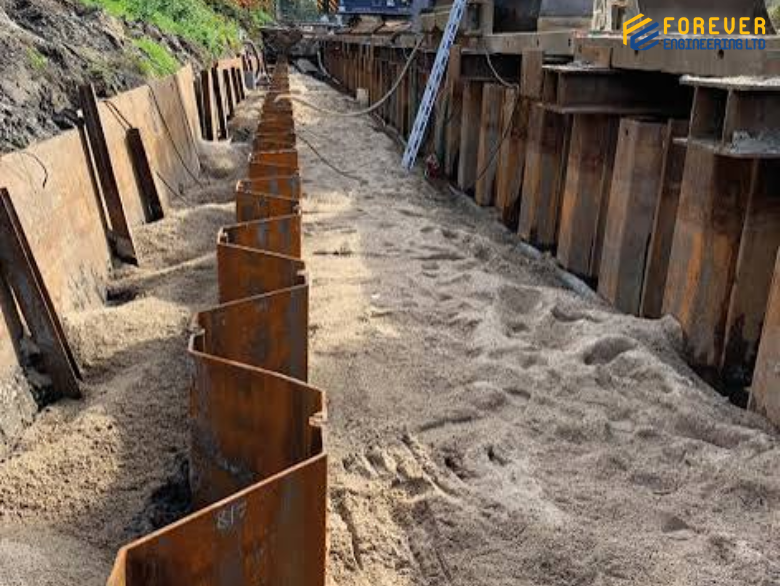

Steel sheet piles connect through interlocks to create a continuous wall. Contractors can arrange the piles in different shapes and provide additional bracing or anchoring when the project requires greater support.
What Is a Sheet Pile Cofferdam?
A sheet pile cofferdam is a temporary enclosure made from interconnected sheet piles. Contractors install the piles into the ground around the planned construction area to create a barrier against soil and water.
The sheet piles extend below the ground or riverbed to provide resistance and help limit water and soil movement. After creating the enclosure, contractors use pumps or other water-control methods to remove water from inside the cofferdam.
Sheet pile cofferdams are commonly used for bridge foundations, pier construction, marine structures, river works, and other projects where workers need access to an area below the water level.
Why Is Sheet Pile Cofferdam Construction Important?
Proper sheet pile cofferdam construction helps contractors create a controlled working area where normal construction activities can take place despite surrounding water.
Benefits include:
- Creates a Dry Working Area: Contractors can remove water from inside the enclosure and create a more suitable area for construction.
- Controls Water: Interlocked sheet piles create a continuous barrier that can reduce water movement into the work area.
- Supports Excavation: The cofferdam can retain surrounding soil while workers excavate inside the enclosure.
- Supports Bridge Construction: Contractors can use cofferdams to construct bridge piers and foundations in rivers or other water environments.
- Saves Working Space: Sheet piles require relatively little space compared with some other temporary structures.
- Supports Temporary Construction: Contractors can remove suitable sheet piles after completing the required construction work.
- Provides Flexible Applications: Contractors can arrange sheet piles according to the size and shape of the required work area.
Main Components of a Sheet Pile Cofferdam
A sheet pile cofferdam consists of several important components. The project design determines the required arrangement and size of each component.
- Steel Sheet Piles: Steel sheet piles form the main enclosure. Their interlocking edges connect adjacent piles and create a continuous wall.
- Walers: Walers can support the sheet pile wall horizontally and help distribute loads along the cofferdam.
- Struts: Internal struts can connect opposite walls and provide additional support against lateral pressure.
- Tie Rods and Anchors: Some cofferdam designs use tie rods or anchors to provide additional wall support. Engineers select the system according to project conditions.
- Water Pumps: Pumps remove water that enters the cofferdam through seepage, rainfall, or other sources.
- Bracing System: The bracing arrangement helps control wall movement and maintain stability during excavation and construction.
Sheet Pile Cofferdam Design Considerations
Engineers should review several conditions before finalizing the cofferdam design.
- Water Depth: Water depth affects the required pile length, wall height, and support requirements.
- Soil Conditions: Soil type affects pile penetration, lateral resistance, and installation difficulty.
- Groundwater Pressure: Groundwater can create pressure behind and below the cofferdam. The design should account for expected water conditions.
- River Flow: Flowing water can place additional forces on the cofferdam. Contractors should consider current speed, water level, and possible changes during construction.
- Tidal Conditions: Tidal changes can affect water pressure and the working level inside and outside the cofferdam.
- Excavation Depth: Deeper excavation can increase lateral soil pressure and may require additional bracing or anchoring.
- Sheet Pile Profile: Different profiles provide different strength, weight, stiffness, and interlock characteristics.
- Embedment Depth: Sufficient embedment helps the wall resist lateral loads and reduces the risk of movement.
- Nearby Structures: Bridges, buildings, roads, utilities, and other structures may restrict installation methods and equipment.
- Working Space: The available area affects crane positioning, sheet pile storage, equipment movement, and cofferdam dimensions.
Common Sheet Pile Cofferdam Arrangements
Contractors can use different arrangements depending on project requirements.
Single-Wall Cofferdam: A single-wall cofferdam uses one continuous line of interconnected sheet piles around the work area. Contractors can use this arrangement for suitable projects where the design provides adequate resistance and water control.
Braced Cofferdam: A braced cofferdam uses internal walers and struts to support the sheet pile walls. This arrangement can help control wall movement when the cofferdam requires additional internal support.
Double-Wall Cofferdam: A double-wall cofferdam uses two parallel sheet pile walls connected by suitable structural components. The space between the walls can provide additional stability for certain applications.
Step-by-Step Sheet Pile Cofferdam Construction
- Inspect the Work Area: Workers inspect water depth, soil conditions, river flow, groundwater, nearby structures, utilities, and access conditions.
- Review the Cofferdam Design: The project team checks sheet pile profile, pile length, wall arrangement, embedment depth, bracing, and other design requirements.
- Prepare the Site: Contractors prepare stable access for cranes, piling equipment, pumps, and other machinery.
- Mark the Cofferdam Alignment: Workers mark the exact position and dimensions of the cofferdam according to the approved layout.
- Position the First Sheet Pile: A crane lifts the first sheet pile and positions it at the required location. Workers check alignment and verticality.
- Drive the First Sheet Pile: Contractors use a suitable vibratory hammer, impact hammer, or hydraulic press to drive the pile into the ground.
- Install the Next Sheet Pile: Workers position the next pile and connect its interlock with the installed pile.
- Continue Sheet Pile Installation: The team continues installing interconnected piles around the planned cofferdam perimeter.
- Check Alignment and Interlocks: Workers monitor pile position, verticality, and interlock connections throughout installation.
- Install Walers and Bracing: Contractors install walers, struts, tie rods, or other support systems according to the design.
- Complete Excavation: Workers excavate inside the cofferdam while monitoring wall movement and ground conditions.
- Remove Water: Pumps remove accumulated water from the enclosed area. Workers continue pumping as required during construction.
- Complete Foundation or Structural Work: After establishing a suitable working condition, contractors carry out the planned foundation, pier, footing, or other construction work.
- Remove the Cofferdam: After completing the required work, contractors can extract suitable sheet piles using appropriate equipment when the cofferdam is temporary.
Equipment Used for Sheet Pile Cofferdam Construction
The right equipment helps contractors install sheet piles efficiently and safely.
Vibratory Hammer: A vibratory hammer creates rapid vibration that reduces soil resistance around the sheet pile and helps it penetrate the ground. Contractors commonly use vibratory hammers for temporary cofferdams because they can provide efficient installation and extraction.
Impact Hammer: An impact hammer drives sheet piles through repeated blows. Contractors may select this equipment when the ground creates high driving resistance.
Hydraulic Press-In Equipment: Hydraulic press-in equipment pushes sheet piles into the ground using controlled hydraulic force. This method can help reduce noise and vibration in sensitive locations.
Crane: A crane lifts, positions, and supports sheet piles during installation. The crane must have suitable capacity and stable ground support.
Water Pumps: Pumps remove water from inside the cofferdam and help maintain the required working condition.
Lifting Accessories: Slings, shackles, hooks, clamps, and other lifting accessories help workers handle sheet piles during installation.
Water Control During Sheet Pile Cofferdam Construction
Water control plays an important role in sheet pile cofferdam construction. Even when sheet piles form a continuous wall, some water can enter through interlocks, soil, groundwater, or the bottom of the excavation.
Contractors should consider:
- Groundwater pressure
- River water level
- Tidal conditions
- Soil permeability
- Seepage
- River flow
- Scour
- Cofferdam embedment
- Interlock condition
- Pumping capacity
- Bottom stability
Workers should monitor water levels throughout construction. Excessive pumping can also affect surrounding soil and nearby structures, so engineers should consider the effect of water removal before starting the work.
Soil Conditions and Sheet Pile Installation
Soil conditions strongly affect cofferdam installation.
- Soft Clay: Soft clay can allow easier pile penetration, but workers should monitor wall movement and ground stability.
- Stiff Clay: Stiff clay can create higher driving resistance and may require suitable piling equipment.
- Dense Sand: Dense sand can create high friction around the pile and increase installation resistance.
- Loose Sand: Loose sand can move during excavation and water removal, so contractors should monitor surrounding ground conditions.
- Gravel: Gravel can make sheet pile installation more difficult and may require specialized equipment.
- Mixed Soil: Different soil layers can cause changing driving resistance during installation.
A proper site investigation helps contractors understand these conditions before selecting the installation method.
Applications of Sheet Pile Cofferdams
Sheet pile cofferdam construction supports many water-related construction projects.
Bridge Foundation Construction: Contractors use cofferdams to create a controlled area around bridge piers and foundations. Workers can excavate and construct foundations while the cofferdam limits surrounding water movement.
River Construction: Cofferdams allow contractors to create temporary work areas in rivers. They can support foundation construction, bank works, drainage structures, and other river projects.
Marine Construction: Contractors use cofferdams for marine structures, waterfront foundations, docks, and other construction activities where workers need controlled access to areas surrounded by water.
Dam and Hydraulic Projects: Cofferdams can provide temporary enclosures during certain dam, canal, drainage, and hydraulic construction activities.
Pier Construction: Contractors can install sheet pile cofferdams around planned pier locations and create a controlled area for excavation and foundation work.
Pipeline and Utility Construction: Temporary cofferdams can help create controlled work areas for certain underwater or near-water utility projects.
Challenges During Sheet Pile Cofferdam Construction
Contractors can face several challenges during cofferdam work.
- High Water Pressure: Increased water levels can place additional pressure on the cofferdam.
- Water Seepage: Water can enter through soil, pile interlocks, or the bottom of the excavation.
- High Driving Resistance: Dense soil, gravel, rocks, or underground obstructions can make pile installation difficult.
- Pile Damage: Excessive driving force can damage sheet piles or their interlocks.
- Poor Alignment: Incorrect alignment can affect the quality and performance of the cofferdam.
- Ground Movement: Excavation and pumping can cause surrounding soil movement.
- River Flow: Strong currents can place additional loads on the temporary structure.
- Limited Working Space: Small sites can make pile handling and equipment operation difficult.
- Excessive Vibration: Installation vibration can affect nearby buildings, roads, utilities, or other structures.
Proper site investigation, design, equipment selection, and monitoring can help reduce these challenges.
Best Practices for Sheet Pile Cofferdam Construction
Following proper practices can improve construction efficiency and safety.
- Inspect the Site Before Construction: Review soil, groundwater, water depth, river flow, nearby structures, utilities, and access.
- Select Suitable Sheet Piles: Match pile profile, thickness, length, and strength with project requirements.
- Select Suitable Installation Equipment: Choose vibratory, impact, or hydraulic press-in equipment according to soil and site conditions.
- Maintain Accurate Alignment: Check pile position and verticality during installation.
- Check Interlocks: Make sure each sheet pile properly connects with the adjacent pile.
- Provide Suitable Bracing: Install walers, struts, anchors, or other support components according to the approved design.
- Monitor Water Levels: Check water levels inside and outside the cofferdam throughout construction.
- Monitor Ground Movement: Observe nearby structures and surrounding ground for unexpected movement.
- Maintain Pumping Equipment: Ensure pumps have suitable capacity and remain ready during construction.
- Follow the Approved Construction Plan: Workers should follow the approved installation sequence, support arrangement, lifting procedures, and safety requirements.
Safety Considerations During Cofferdam Construction
Sheet pile cofferdam construction involves heavy steel piles, cranes, piling hammers, water, excavation, and other construction hazards. Contractors need strong safety controls throughout the project.
Safety measures include:
- Inspect cranes and piling equipment before use.
- Check slings, shackles, hooks, and lifting clamps.
- Establish a controlled work zone.
- Keep unauthorized workers away from lifting operations.
- Use trained and authorized equipment operators.
- Check crane ground stability.
- Maintain safe clearance from power lines.
- Use suitable personal protective equipment.
- Control sheet pile movement during lifting and positioning.
- Monitor water levels and pumping operations.
- Monitor nearby structures and utilities.
- Control noise and vibration where required.
- Provide safe access to the work area.
- Stop work when site or equipment conditions become unsafe.
- Follow approved lifting, installation, excavation, and safety procedures.
Proper safety planning helps protect workers, equipment, nearby structures, and the surrounding environment.
How Forever Engineering Ltd. Supports Sheet Pile Cofferdam Projects
Forever Engineering Ltd. provides sheet pile solutions for construction projects in Bangladesh. The company supports sheet pile requirements for cofferdams, excavation support, bridge projects, riverbank protection, marine works, basement construction, and other applications.
- Sheet Pile Supply: Forever Engineering Ltd. provides steel sheet pile supply solutions based on project requirements.
- Project Requirement Support: The company helps clients consider pile size, length, application, quantity, and site conditions.
- Installation Equipment Support: Project requirements help determine suitable piling equipment for sheet pile installation.
- Construction Support: Forever Engineering Ltd. provides project-focused support for sheet pile applications and construction requirements.
Benefits of Choosing Forever Engineering Ltd.
Selecting an experienced sheet pile supplier can help contractors manage cofferdam construction requirements more effectively.
Reliable Sheet Pile Supply: Forever Engineering Ltd. provides steel sheet pile supply solutions for different construction and infrastructure projects.
Project-Based Solutions: Each cofferdam project has different water levels, soil conditions, excavation depths, and site restrictions. The company focuses on project requirements when supporting sheet pile needs.
Professional Support: Clear communication and project-focused assistance help clients understand their material and construction requirements.
Wide Construction Applications: Forever Engineering Ltd. supports sheet pile requirements for cofferdams, excavation support, retaining walls, bridge construction, marine projects, riverbank protection, and other construction applications.
Contact Forever Engineering Ltd.
Need professional sheet pile cofferdam construction solutions for your construction project?
Contact Forever Engineering Ltd. to discuss your sheet pile requirements, cofferdam application, pile specifications, installation method, equipment needs, site conditions, and project schedule.
Conclusion
Sheet pile cofferdam construction provides a practical method for creating temporary work areas in rivers, canals, marine environments, and other water-related construction sites. Interconnected steel sheet piles form a barrier that can help control water and retain surrounding soil while contractors complete foundation and structural work.
The success of a cofferdam depends on proper design, suitable sheet pile selection, correct embedment, reliable installation equipment, effective bracing, and appropriate water-control measures. Contractors should evaluate water depth, soil conditions, groundwater pressure, river flow, excavation depth, nearby structures, and available working space before construction.
Vibratory hammers, impact hammers, and hydraulic press-in systems can provide different installation options depending on project conditions. Accurate alignment, proper interlock connections, continuous monitoring, trained operators, and strong safety procedures can improve construction performance.
Forever Engineering Ltd. provides sheet pile supply and project support for cofferdams and other construction applications in Bangladesh. The company helps clients plan their sheet pile requirements according to project conditions and construction needs.
Frequently Asked Questions
- What is a sheet pile cofferdam?
A sheet pile cofferdam is a temporary enclosure made from interconnected sheet piles. Contractors use it to create a controlled work area in or near water.
- What is the main purpose of a sheet pile cofferdam?
The main purpose is to control water and retain soil so contractors can carry out foundation, excavation, bridge, marine, or other construction work inside the enclosed area.
- What equipment is used for sheet pile cofferdam construction?
Contractors commonly use cranes, vibratory hammers, impact hammers, hydraulic press-in equipment, water pumps, and lifting accessories.
- Can sheet pile cofferdams stop all water?
Not necessarily. Sheet piles can reduce water movement, but seepage can occur through interlocks, surrounding soil, groundwater, or the bottom of the excavation. Engineers should design suitable water-control measures for the project.
- Where are sheet pile cofferdams used?
Contractors use them for bridge foundations, pier construction, river projects, marine structures, hydraulic projects, waterfront construction, and other projects that require a controlled work area near water.
- What factors affect cofferdam design?
Water depth, soil conditions, groundwater pressure, river flow, tidal conditions, excavation depth, pile profile, embedment depth, nearby structures, and available working space can affect the design.
- Are sheet pile cofferdams temporary structures?
Yes. Contractors commonly use sheet pile cofferdams as temporary structures. Suitable sheet piles can often be extracted after completing the required construction work.
- How can contractors improve cofferdam safety?
Contractors can improve safety through proper site investigation, suitable design, equipment inspection, controlled lifting, safe excavation, water-level monitoring, trained operators, and continuous monitoring of the cofferdam and surrounding area.
- Can Forever Engineering Ltd. supply sheet piles for cofferdam projects?
Yes. Forever Engineering Ltd. provides steel sheet pile supply and project support for cofferdams, bridge construction, excavation support, marine works, riverbank protection, and other construction applications.
