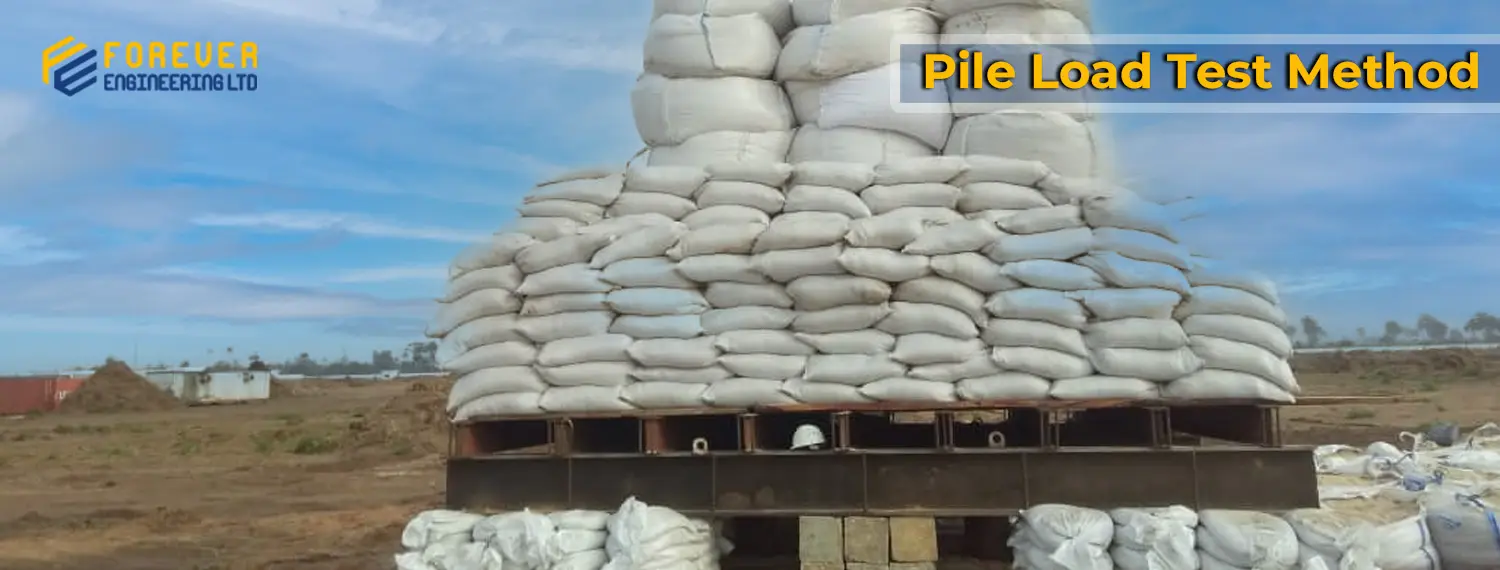

Pile Load Test Method

Pile Load Test Method – Ensure  Foundation Strength & Stability

In the construction industry, pile load testing is a crucial procedure for assessing the stability and capacity of foundation piles. Ensuring the safety and lifespan of any structure placed on top of these piles is vital, and this step is crucial. Finding a pile’s weight-carrying capacity under various loading scenarios is the main objective of pile load testing.

For engineers, contractors, and project managers involved in building construction, a thorough understanding of pile load testing is essential. That’s why today we are going to explore pile load test method. So let’s get started.

Understanding Pile Load Testing

Pile load testing is a technique for determining the load-bearing capability and integrity of deep foundations such as piles and drilled shafts. In order to test the pile, a load is applied, and the pile’s reaction to the load is measured. Hydraulic jacks are typically used to apply the load, and displacement transducers, load cells, and strain gauges are used to assess the pile’s response.

There are two forms of pile load testing: static pile load test and dynamic pile load test. Applying a load to the pile and tracking its response over time is known as static load testing. Using a fast impact load and tracking the pile’s reaction to the force is known as dynamic load testing.

Key Takeaways

  • To guarantee the stability and safety of any structure constructed on top of foundation piles, pile load testing is an essential stage.
  • Depending on the variables involved, there are various forms of pile load testing, including as static load testing and dynamic load testing.
  • A pile is driven into the ground, a weight is applied, and the pile’s response is measured as part of the pile load testing process.

Importance of Pile Load Test

Pile load testing is an important element of the construction process because it assures that the deep foundations can withstand the loads they will face over their lifetime. Engineers can assess the piles’ capacity to support a given amount of weight by conducting pile load testing. This information aids in the construction of the most effective and economical foundation systems.

Pile load testing is particularly crucial when there is uncertainty about the soil or when heavy loads are anticipated on the foundation. In these situations, pile load testing can assist in identifying any issues before to the start of construction, thereby saving time and money.

To summarize, pile load testing is an important phase in the construction process that contributes to the safety and stability of deep foundations. Engineers may design foundation systems that are more cost-effective and efficient while still bearing the loads they will encounter over time by knowing the definition and significance of pile load testing.

Types of Pile Load Testing

Pile load testing is an important stage in verifying the safety and stability of a foundation. There exist multiple varieties of pile load testing, each serving a distinct objective. Static load testing, dynamic load testing, and lateral load testing are the three primary forms of pile load testing that will be covered in this section.

Static Load Testing

Static Load Testing is the most precise method for calculating pile capacity. It can ascertain a foundation pile’s ultimate failure load by measuring the pile’s reaction to an applied load. This kind of testing involves placing a weight on the pile and calculating the strain and deflection of the pile. After that, the load is increased until the pile can hold its maximum weight.

Static Load Testing can be further divided into three categories:

Compression Test: The purpose of this test is to evaluate the pile’s resistance to compression forces.

Tension Test: The purpose of this test is to evaluate the pile’s resistance to uplift pressures.

Lateral Load Test:The purpose of this test is to evaluate the pile’s resistance to lateral forces.

Dynamic Load Testing

Dynamic Load Testing is a more efficient and cost-effective way for testing piles. It entails creating a shockwave that passes through the pile using an impact hammer. Using strain gauges and accelerometers, the pile’s response is measured.

Dynamic Load Testing can be further divided into two categories:

High-Strain Dynamic Testing: The piles used for this test are already installed. It entails applying a significant weight to the pile and measuring the stress wave that results.

Rapid Load Testing: On recently placed piles, this test is carried out. It entails unexpectedly loading the pile and observing how it responds.

Lateral Load Testing

Lateral Load Testing is done to test the pile’s ability to withstand lateral forces. Usually, heaps placed in batters or at an angle are the targets of this kind of testing. Applying a horizontal force on the pile and measuring the resulting deflection is known as lateral load testing.

To sum up, every variety of pile load testing has pros and cons of its own. The project’s particular needs will determine which testing method is used. It’s crucial to speak with a licensed engineer to choose the right testing strategy for your project.

Pile Load Test Method

Preparation

A pile load test requires a number of preparations before it can be carried out. Choosing the kind of pile to be tested is the first stage. The pile needs to be an accurate representation of the size and kind of piles that will be utilized in the building project. Choosing the test load that will be applied to the pile is the next stage. The design load of the pile and the anticipated behavior of the pile under load must serve as the foundation for the test load.

The test apparatus needs to be ready when the pile and test load have been established. This covers the reaction piles, hydraulic jacks, and load cell. The hydraulic jacks are used to apply the load, and the load cell is used to measure the amount of load applied to the pile. To sustain the hydraulic jacks, there are reaction piles.

Execution

There are multiple steps to the pile load test. The initial load test is the first step, and it’s done to make sure the pile is installed correctly and that there are no problems with the pile or the test apparatus. Usually, the first load test is carried out at 25% of the design load.

The test load is gradually increased once the first load test is finished. Until the pile reaches its maximum capacity or the required load is reached, the load is increased in increments of 25% of the design load. The load is maintained for a while at each stage to give the pile time to level out.

Observation

To ascertain the behavior of the pile under load, a number of observations are performed during the pile load test. The pile’s deflection, settlement, and applied load are all included in these observations. A displacement transducer or a dial gauge are used to measure the pile’s deflection. A settlement plate or settlement gauge is used to measure the pile’s settlement. The load cell is used to measure the load applied to the pile.

The pile’s capacity and the validity of the design assumptions are ascertained using the load test data. It can be necessary to make adjustments to the design or the building techniques if the pile load test results do not match the design assumptions.

All things considered, the pile load test is a crucial phase in the building process. It helps to guarantee that the pile will be able to support the design load and gives important information about how the pile behaves under load.

Safety Measures in Load Testing

Pile load testing is a necessary practice to assure the safety and stability of any foundation. To avoid mishaps and guarantee correct outcomes, it is imperative to adhere to the recommended safety precautions. We will go over a few of the safety precautions that need to be taken when doing pile load testing in this section.

Safety Planning

To detect potential hazards and reduce risks, a safety plan must be prepared prior to beginning the load testing. The following has to be part of the safety plan:

  • Detailed description of the pile load testing technique.
  • Identification of possible risks and hazards related to the testing process.
  • An inventory of the safety gear needed for the testing process.
  • Emergency action plan for injuries or accidents.

Safety Equipment

When doing pile load testing, it is essential to wear the appropriate safety gear. When doing pile load testing, the following safety gear needs to be utilized:

  • Items of personal protective equipment (PPE) include gloves, safety shoes, hard helmets, and safety glasses.
  • Fall safety tools, like lifelines and harnesses.
  • Fire extinguishers.
  • First aid kit.

Load Testing Equipment

In order to guarantee reliable results and avoid mishaps, load testing equipment needs to be constantly maintained and calibrated. When use load testing equipment, the following safety precautions need to be followed:

  • Before being used, the load testing apparatus needs to be checked to make sure it is in good working order.
  • To guarantee accurate findings, the load testing apparatus needs to be calibrated on a regular basis.
  • Only individuals with the necessary training and qualifications may operate the load testing apparatus.

Other Safety Measures

During pile load testing, the following safety precautions must be taken in addition to the ones mentioned above:

  • Barricading the testing area is necessary to prevent unwanted entry.
  • To maintain visibility, the testing space needs to be well-lit.
  • To avoid mishaps, the testing area needs to be maintained spotless and clear of clutter.

In summary, pile load testing is an essential process that needs to be carried out carefully to guarantee accurate results and avoid mishaps. Accurate findings can be produced and the danger of accidents and injuries reduced by adhering to the safety precautions previously outlined.

Final Words

The pile load test method is an important part of foundation engineering since it provides critical data for ensuring structural safety and stability. Engineers may build more dependable and economical foundations, thereby enhancing the durability and integrity of the built environment, by precisely determining the load-bearing capacity of piles.
