What is a Pile Load Test Method in Geotechnical Engineering?
In geotechnical engineering, a pile load test method is a field test used to determine the bearing capacity and settlement characteristics of a pile under applied loads. It is one of the most reliable methods for evaluating how a pile will perform under actual working conditions. This test simulates the real-life loads that the foundation will experience from the superstructure, ensuring the pile design is both safe and effective.
The test involves applying a controlled load to a test pile and measuring its displacement or settlement over time. The results provide valuable information about the pile’s behavior under axial (vertical) and lateral (horizontal) loads, helping engineers to validate or adjust the design assumptions used in the planning stages.
Why is Pile Load Testing Essential for Foundation Design and Construction?
The pile load test method plays a crucial role in foundation engineering for several reasons:
- Verifying Load-Bearing Capacity: This confirms whether a pile can safely support the design load without undergoing excessive settlement or structural failure.
- Optimizing Design: Actual test results can help refine pile design, potentially allowing for cost-effective changes in pile length, diameter, or type.
- Ensuring Safety: Since foundations support the entire structure, ensuring that the piles behave as expected reduces the risk of building settlement or collapse.
- Complying with Standards: Building codes and geotechnical standards often require pile load testing, especially for critical infrastructure and high-rise buildings.
- Identifying Site-Specific Behavior: Soil conditions can vary greatly, even within a small area. Load testing provides site-specific performance data that theoretical calculations alone may miss.
Forever Engineering LTD ensures that every foundation is built on reliable, tested ground.
Importance of the Pile Load Test Method
The pile load test method is vital for several aspects of modern construction:
- Performance Validation: It bridges the gap between theoretical calculations and actual field performance.
- Quality Assurance: Load testing ensures that the piles were installed correctly and meet project specifications.
- Risk Reduction: Identifying potential foundation issues early helps avoid costly structural problems later in the construction lifecycle.
- Data-Driven Decisions: Engineers use load test data to make informed decisions about foundation design, modifications, and safety margins.
- Economic Benefits: If a pile performs better than expected, testing results may lead to a reduction in the number or size of piles needed, saving both time and money.
What Are the Different Types of Pile Load Test Methods?
There are several types of pile load test methods used, depending on the project requirements and soil conditions:
- Static Load Test:
- Most commonly used.
- A gradual load is applied to the pile head using hydraulic jacks, and the settlement is measured.
- It can be conducted for compression, tension, and lateral loads.
- Dynamic Load Test:
- Involves striking the pile head with a hammer and analyzing the response using sensors and software.
- Faster and less expensive than static tests, but less precise.
- Suitable for large-scale projects and driven piles.
- Statnamic Load Test:
- Combines features of both static and dynamic tests.
- Uses a rapid loading technique to simulate static loading conditions.
- Useful for testing large-diameter piles in a limited time.
- Pile Integrity Test (PIT):
- While not a load test in the traditional sense, this low-strain dynamic method checks for flaws or discontinuities in the pile.
- Maintained Load Test (MLT):
- A variation of the static test where load is applied and held at intervals, monitoring the settlement over time.
- CRP (Constant Rate of Penetration) Test:
- Applies a continuous load at a constant penetration rate to evaluate soil resistance.
Each method has its advantages and is selected based on budget, accuracy needs, time constraints, and site conditions.
What Equipment Is Required for Conducting a Pile Load Test?
The equipment needed depends on the test method, but typically includes:
- Hydraulic Jack: To apply controlled loads to the pile.
- Reaction Frame or Kentledge System: Provides resistance to the hydraulic jack. Reaction can come from anchor piles or heavy weights.
- Load Cells: For accurate measurement of applied loads.
- Settlement Measuring Devices: Dial gauges, LVDTs (Linear Variable Differential Transformers), or total stations to measure pile movement.
- Data Logger: Records load and displacement readings in real time.
- Strain Gauges: Installed on reinforcement to measure internal pile response (optional).
- Hammers and Sensors: Used in dynamic tests to deliver impact and measure wave propagation.
Proper setup, calibration, and expertise are crucial to obtaining reliable data from pile load testing. At Forever Engineering LTD, we use calibrated and high-precision equipment to ensure accurate results for every test.
How Is the Load Applied During a Pile Load Test Method?
In a pile load test, the load is applied in a controlled and systematic manner to determine how a pile responds under various force levels. The most commonly used method is the static load test, where a gradual axial load (either compressive or tensile) is applied to the top of the pile using hydraulic jacks.
This load is applied in increments, typically following a step-loading schedule. After each increment, the load is held constant for a specific period—commonly 30 minutes to an hour—while the settlement or displacement of the pile is recorded. The test continues until the design load is reached or until failure or excessive settlement is observed.

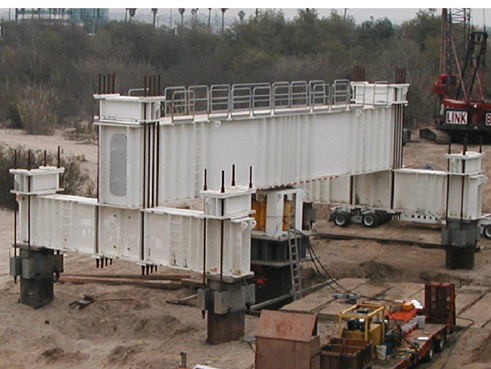

To provide a stable resistance, the hydraulic jack pushes against a reaction system, which can include heavy concrete blocks (kentledge) or anchored piles. In lateral load tests, the force is applied horizontally to assess the lateral behavior of the pile.
In dynamic load testing, a hammer or drop weight delivers a sudden impact to the pile head, and sensors record the pile’s stress-wave response to calculate capacity. These tests are quicker but require advanced data interpretation.
How Does Soil Type Influence the Selection of a Pile Load Test Method?
Soil type plays a critical role in determining which pile load test method is most suitable:
- In soft clay or loose sand, where settlement can be large and gradual, a static load test is more reliable. It captures the slow movement and creep behavior of weak soils under sustained loads.
- In dense granular soils, dynamic load testing is often preferred. These soils transfer load quickly, and the pile’s response to dynamic impact can closely approximate actual performance.
- In mixed or variable soils, or when the pile penetrates multiple layers with different stiffness, a Statnamic load test may offer a better representation of real-world behavior due to its combined static-dynamic approach.
Soil stiffness, pore water pressure behavior, and the potential for soil setup or relaxation all influence how the load is transferred and how the test should be conducted. Forever Engineering LTD carefully analyzes subsurface data before choosing the appropriate method.
How Long Does a Typical Pile Load Test Take to Complete?
The duration of a pile load test depends on the type of test and project requirements:
- Static load tests usually take between 24 to 72 hours for setup, loading, and observation. The actual loading phase may last from 6 to 24 hours, especially when conducted up to the ultimate or twice the working load.
- Maintained load tests take longer due to the need to hold each load step for extended periods.
- Dynamic load tests can be completed in a matter of hours, including sensor installation, hammer drops, and data collection.
- Pile integrity tests (PIT), being low-strain and non-destructive, are the quickest—often completed within minutes per pile.
The timeline must also include preparation, installation of instruments, reaction setup, and post-test analysis. Forever Engineering LTD follows international standards to ensure the test duration is optimized without compromising accuracy.
When Should a Pile Integrity Test Be Used Instead of a Load Test?
A Pile Integrity Test (PIT) is used when the goal is to assess the structural soundness of a pile rather than its load-bearing capacity. It is particularly suitable in the following scenarios:
- To detect defects, such as cracks, necking, bulging, or discontinuities in the pile shaft.
- As part of routine quality control, especially in cast-in-situ piles, where construction anomalies are more likely to occur.
- When it’s not feasible to install a full reaction system for a load test due to site constraints.
- To test a large number of piles quickly and cost-effectively, especially when only a few need full-scale load testing.
While a PIT provides information about pile length, cross-section, and material integrity, it cannot replace a load test when bearing capacity data is required for foundation design. Forever Engineering LTD often recommends both methods depending on the project scope.
How Does a Pile Load Test Method Impact Foundation Design Decisions?
Pile load tests directly influence key foundation design choices by validating or correcting assumptions made during the design phase. Here’s how:
- Confirming capacity: Actual data from a load test helps confirm whether piles can safely carry the designed loads. If they perform better than expected, the design may be optimized—reducing the number, length, or diameter of piles.
- Settlement analysis: The test reveals how much settlement occurs at various loads. This helps determine the serviceability limits and decide whether adjustments are needed to avoid structural distress.
- Soil-structure interaction: Test results show how the soil responds to loading, allowing engineers to model soil-pile interaction more accurately in the foundation system.
- Material efficiency: With accurate performance data, overdesign is avoided, leading to cost savings on materials and construction time.
- Compliance with codes: Load tests ensure the foundation system meets local building codes, especially for critical infrastructure projects.
In summary, the data collected from a pile load test gives engineers confidence and clarity, enabling the design of safe, durable, and efficient foundations.
Conclusion: Pile Load Test Method – Ensuring Foundation Reliability with Forever Engineering Ltd.
At Forever Engineering Ltd., we understand that the strength of any structure lies in the reliability of its foundation. That’s why we emphasize the importance of the pile load test method in every geotechnical project we undertake. This method is not just a technical procedure—it’s a vital assurance of safety, performance, and long-term durability.
By conducting accurate pile load tests, we verify the actual load-bearing capacity of piles under real site conditions, optimize foundation design, and ensure compliance with engineering standards. Whether it’s a high-rise building, bridge, or industrial facility, our expert team uses state-of-the-art equipment and proven methodologies to deliver dependable test results you can build on.
With Forever Engineering Ltd., you’re not just getting a test—you’re getting the confidence to construct strong, stable, and successful structures. Trust our expertise to lay the groundwork for your project’s lasting success.
